EcoLafaek Mobile Backend API

EcoLafaek Logo

Autonomous AI Agent Backend

EcoLafaek Mobile Backend API showcases Amazon Bedrock AgentCore with autonomous multi-tool orchestration, creating an intelligent environmental monitoring system that solves real-world waste management challenges in Timor-Leste.

🤖 Core AI Agent Innovation:

Amazon Bedrock Nova-Pro LLM: Multi-modal reasoning engine (image + text analysis)
AgentCore Runtime: Autonomous tool execution with Code Interpreter and Browser primitives
Multi-Round Tool Calling: Agent chains 5+ tools autonomously (SQL → Chart → Map → Web Scrape)
Production Deployment: Live on AWS Lightsail

🌱 Overview

This is a sophisticated autonomous AI agent backend that powers environmental waste reporting for Timor-Leste. This project demonstrates advanced AI agent capabilities using Amazon Bedrock AgentCore to autonomously analyze images, execute SQL queries, generate visualizations, create interactive maps, and scrape web content - all through natural language chat.

Real-World Impact: Helping Timor-Leste combat environmental challenges through AI-powered civic engagement.

🤖 AWS AI Agent Architecture

Autonomous Agent Workflow

Our agent demonstrates true autonomy through multi-round tool calling:

User Query: "Show waste trends and create a map of hotspots"
    ↓
[Round 1] Nova-Pro Reasoning → execute_sql_query tool
    ↓
[Round 2] Receives data → generate_visualization tool (AgentCore Code Interpreter)
    ↓
[Round 3] Chart created → execute_sql_query tool (get hotspot locations)
    ↓
[Round 4] Receives locations → create_map_visualization tool (AgentCore Code Interpreter)
    ↓
[Round 5] Returns comprehensive response with chart + interactive map

AWS Services Used

1. Amazon Bedrock

Service: Amazon Bedrock Runtime API Region: us-east-1

Important: All AI models (Nova-Pro, Titan Embed) are accessed through Amazon Bedrock service, not directly. FastAPI uses bedrock_runtime client to communicate with Bedrock, which then provides access to the models.

Access Pattern:

python

# Initialize Bedrock client (app.py:132-138)
bedrock_runtime = boto3.client(
    'bedrock-runtime',  # ← Access Bedrock SERVICE
    region_name='us-east-1'
)

# Then call models through Bedrock
response = bedrock_runtime.invoke_model(
    modelId='amazon.nova-pro-v1:0'  # ← Model ID inside Bedrock
)

Models Used via Bedrock:

Nova-Pro LLM (amazon.nova-pro-v1:0)

Image Analysis: Waste classification from mobile app photos (via invoke_model())
Multi-Round Reasoning: Autonomous task planning and execution (via converse())
Tool Orchestration: Decides which tools to call and in what sequence

python

# Chat with tool calling (app.py:3709)
response = bedrock_runtime.converse(
    modelId='amazon.nova-pro-v1:0',
    messages=conversation_history,
    toolConfig={'tools': agentcore_tools},  # 5 custom tools
    inferenceConfig={'temperature': 0.2, 'maxTokens': 4096}
)

python

# Image analysis (app.py:611)
response = bedrock_runtime.invoke_model(
    modelId='amazon.nova-pro-v1:0',
    body=json.dumps({
        'messages': [{
            'role': 'user',
            'content': [
                {'text': prompt},
                {'image': {'format': 'jpeg', 'source': {'bytes': image_base64}}}
            ]
        }]
    })
)

2. Amazon Bedrock AgentCore

ARN: arn:aws:bedrock-agentcore:us-east-1:my_aws_ID:runtime/ecolafaek_waste_agent-TGrtjyF5VC

Primitives Used:

✅ Code Interpreter: Python runtime for data analysis and chart generation (matplotlib)
✅ Browser Tool: Playwright-powered web scraping and content extraction

python

# AgentCore Code Interpreter generates charts autonomously
with code_session(region='us-east-1') as client:
    result = client.invoke('executeCode', {
        'language': 'python',
        'code': chart_generation_code  # matplotlib visualization
    })
    # Returns base64 PNG chart

3. External Tools Integration

Our agent integrates multiple external tools:

Database: SQL query execution against production database
Code Execution: Python code interpreter via AgentCore
Web Search: Browser automation via AgentCore Playwright
S3 Storage: Chart and map uploads to Amazon S3

🧠 AI Agent Capabilities

Tool Suite (5 Custom Tools)

Tool Name	Purpose	AWS Service	Example Use
`execute_sql_query`	Query database	Database	"How many reports this week?"
`generate_visualization`	Create charts	AgentCore Code Interpreter	"Show waste distribution chart"
`create_map_visualization`	Generate maps	AgentCore Code Interpreter	"Map hotspots"
`scrape_webpage`	Web scraping	AgentCore Browser Tool	"What is EcoLafaek?"
`get_ecolafaek_info`	Fetch project info	AgentCore Browser Tool	"Tell me about this platform"

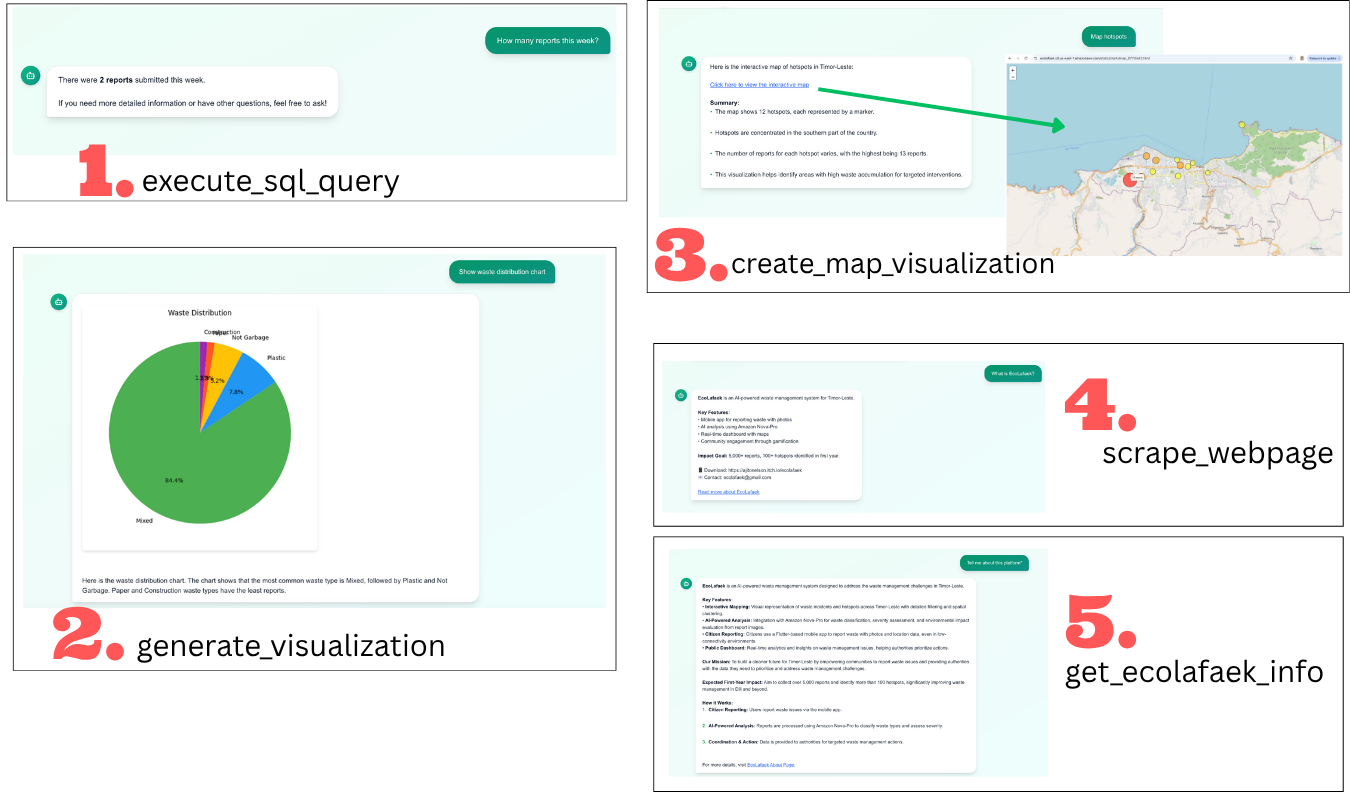

Example Chat Example Output

Autonomous Reasoning Example

User: "Generate charts for waste categories"

Agent Reasoning:

Round 1: "I need waste category data. I'll use execute_sql_query"
    → Executes: SELECT waste_type, COUNT(*) FROM reports GROUP BY waste_type

Round 2: "I have the data. Now I'll create a bar chart using generate_visualization"
    → Generates Python matplotlib code
    → AgentCore executes code in sandbox
    → Returns chart image URL

Round 3: "Chart is ready. I'll format the response with insights"
    → Returns markdown with embedded chart and analysis

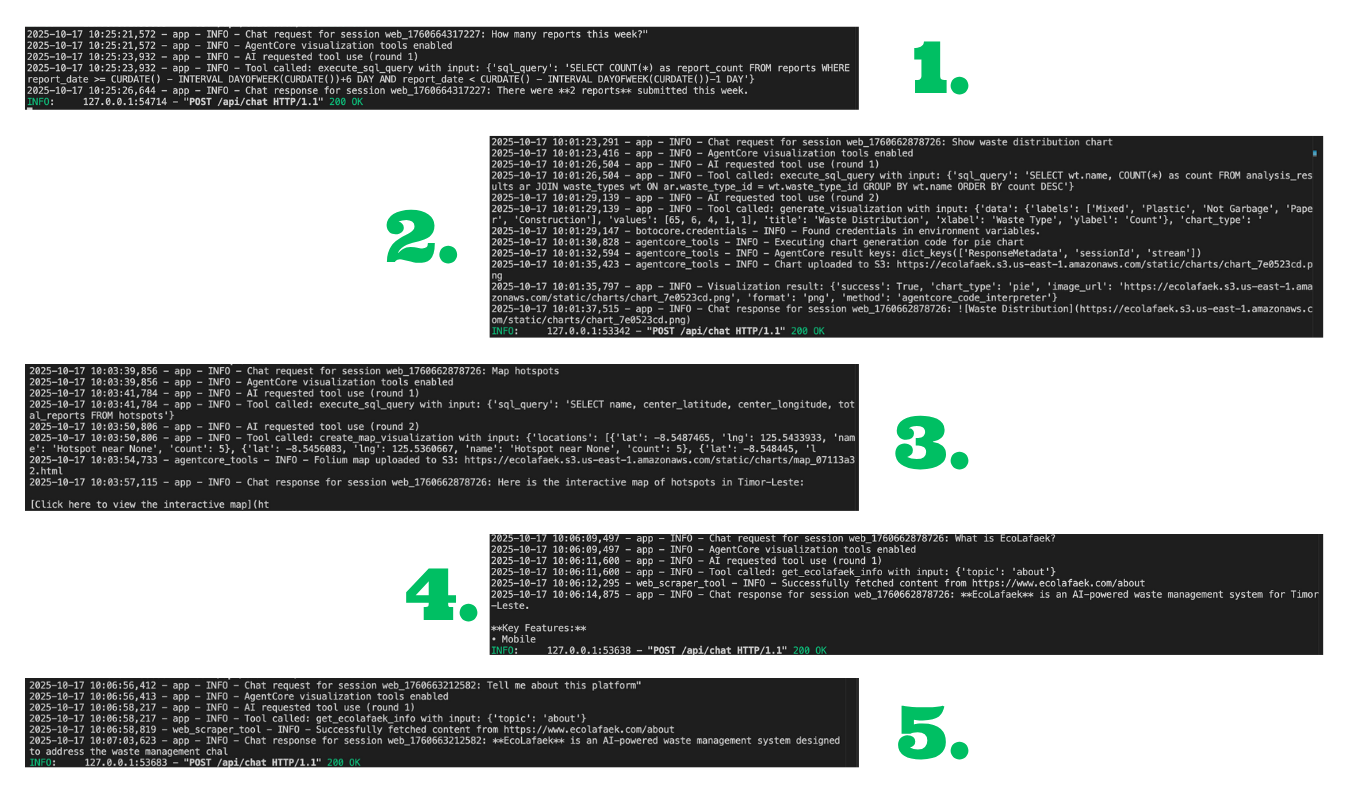

Example chat Log Example Output

🏗️ Technical Architecture

Core Stack

Framework: FastAPI 0.104+ (async, auto-docs)
AI/ML: Amazon Bedrock Nova-Pro + AgentCore
Deployment: AWS Lightsail (Ubuntu 22.04, 1GB RAM, 2 vCPUs)
Storage: Amazon S3 (images + generated charts)
Database: Distributed SQL database (connection pooling)
Web Server: Nginx reverse proxy + Let's Encrypt SSL
Process Manager: systemd service (auto-restart)

Key Endpoints

Endpoint	Method	Purpose	Used By	Rate Limit
`/api/reports`	POST	Submit waste report + image	Mobile App	60/min
`/api/chat`	POST	AI agent chat with tool calling	Dashboard	30/min
`/api/reports/{id}`	GET	Get report details	Mobile App	120/min
`/api/auth/login`	POST	JWT authentication	Mobile App	10/min
`/api/auth/register`	POST	User registration	Mobile App	5/min
`/health`	GET	Health check	All	Unlimited

🚀 Amazon Bedrock AgentCore Implementation

AgentCore Configuration

File: .bedrock_agentcore.yaml

yaml

agents:
  ecolafaek_waste_agent:
    name: ecolafaek_waste_agent
    entrypoint: app.py
    platform: linux/arm64
    container_runtime: docker
    aws:
      account: "Your_AWS_ID"
      region: us-east-1
      execution_role: arn:aws:iam::Your_AWS_ID:role/AmazonBedrockAgentCoreSDKRuntime-us-east-1
      ecr_repository: Your_AWS_ID.dkr.ecr.us-east-1.amazonaws.com/bedrock-agentcore-ecolafaek_waste_agent
    codebuild:
      project_name: bedrock-agentcore-ecolafaek_waste_agent-builder

Deployment Process

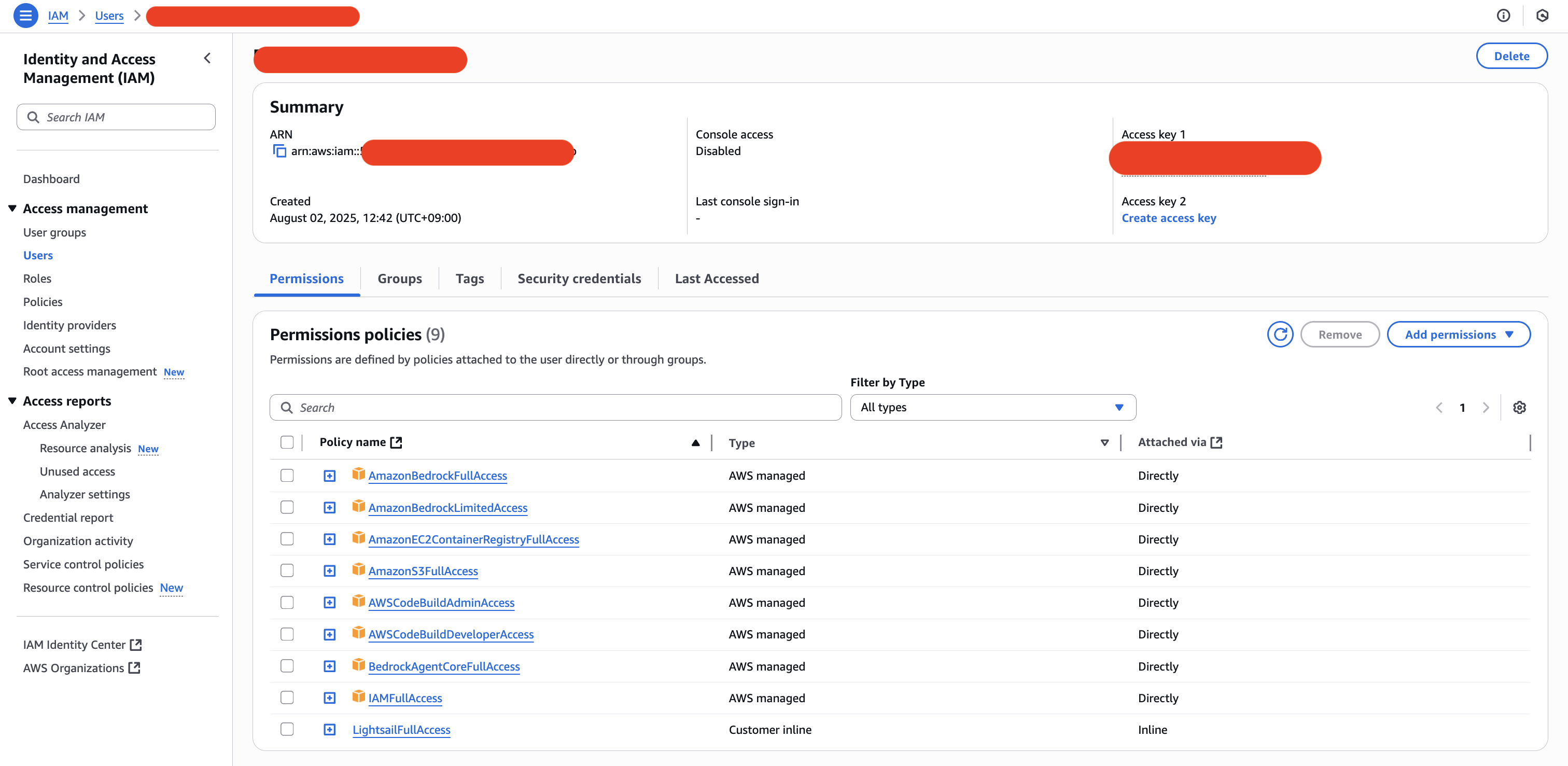

To execute agentcore launch make sure you're iam like bellow: Iam

bash

# 1. Deploy AgentCore runtime (ARM64 via CodeBuild)
agentcore launch

# CodeBuild automatically:
# - Uploads source to S3
# - Builds ARM64 container
# - Pushes to Amazon ECR
# - Deploys to Bedrock AgentCore
# - Creates runtime endpoint (~60 seconds)

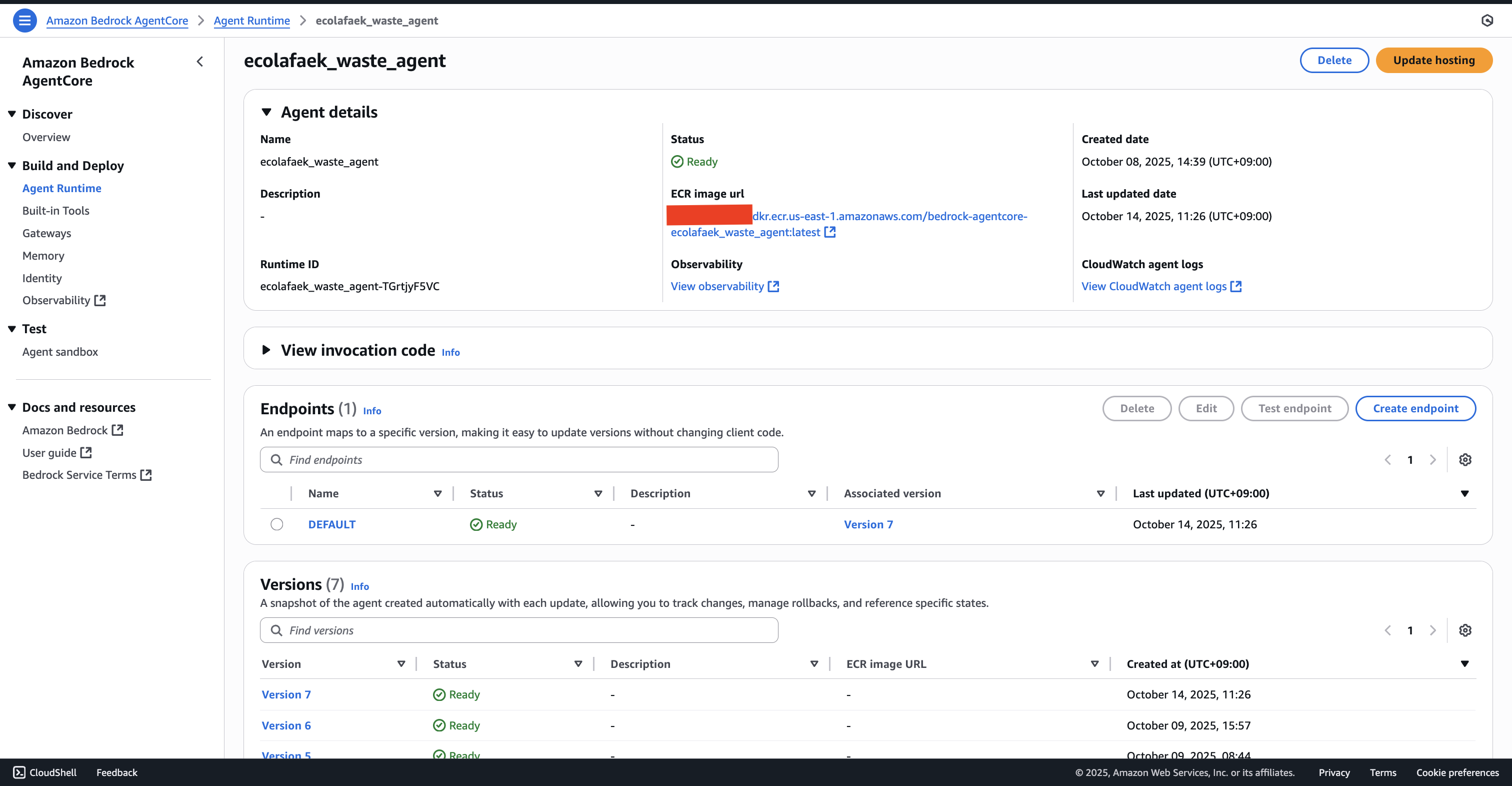

My Aws Agentcore: Aws AgentCore that already Deployed

AgentCore Tools Implementation

Code Interpreter (agentcore_tools.py):

python

from bedrock_agentcore.tools.code_interpreter_client import code_session

def generate_visualization(data: dict, chart_type: str):
    """Generate chart using AgentCore Code Interpreter"""
    with code_session(region='us-east-1') as client:
        # Generate matplotlib code
        code = f"""
        import matplotlib.pyplot as plt
        data = {data}
        plt.{chart_type}(data['labels'], data['values'])
        plt.title(data['title'])
        plt.savefig('chart.png')
        """

        # Execute in AgentCore sandbox
        result = client.invoke('executeCode', {
            'language': 'python',
            'code': code
        })

        # Upload to S3 and return URL
        return upload_chart_to_s3(result['output'])

Browser Tool (web_scraper_tool.py):

python

from bedrock_agentcore.tools.browser_client import browser_session
from playwright.sync_api import sync_playwright

def scrape_webpage_with_browser(url: str):
    """Scrape webpage using AgentCore Browser Tool"""
    with sync_playwright() as playwright:
        with browser_session(region='us-east-1') as client:
            ws_url, headers = client.generate_ws_headers()
            browser = playwright.chromium.connect_over_cdp(ws_url, headers=headers)

            page = browser.contexts[0].pages[0]
            page.goto(url, wait_until='domcontentloaded')

            return {
                'title': page.title(),
                'content': page.content()[:3000],
                'text': page.evaluate("() => document.body.innerText")
            }

📸 Image Analysis with Nova-Pro

Model: amazon.nova-pro-v1:0Capability: Image + Text multi-modal analysis

python

def analyze_image_with_bedrock(image_url: str):
    """Analyze waste image using Nova-Pro multi-modal LLM"""
    # Download image and convert to base64
    image_data = download_and_encode_image(image_url)

    # Call Nova-Pro with image + structured prompt
    response = bedrock_runtime.invoke_model(
        modelId='amazon.nova-pro-v1:0',
        body=json.dumps({
            'messages': [{
                'role': 'user',
                'content': [
                    {'text': WASTE_ANALYSIS_PROMPT},
                    {'image': {'format': 'jpeg', 'source': {'bytes': image_data}}}
                ]
            }],
            'inferenceConfig': {'temperature': 0.2, 'maxTokens': 2048}
        })
    )

    # Returns structured analysis:
    # - waste_type, severity_score, priority_level
    # - environmental_impact, safety_concerns
    # - estimated_volume, confidence_score

Analysis Output

json

{
  "waste_type": "Mixed (predominantly plastic)",
  "severity_score": 8,
  "priority_level": "high",
  "environmental_impact": "High pollution risk, potential harm to wildlife",
  "estimated_volume": "Approximately 10 cubic meters",
  "safety_concerns": "Sharp objects, fire hazard risk",
  "confidence_score": 95,
  "full_description": "Large accumulation of mixed waste including plastic bottles..."
}

Example Output

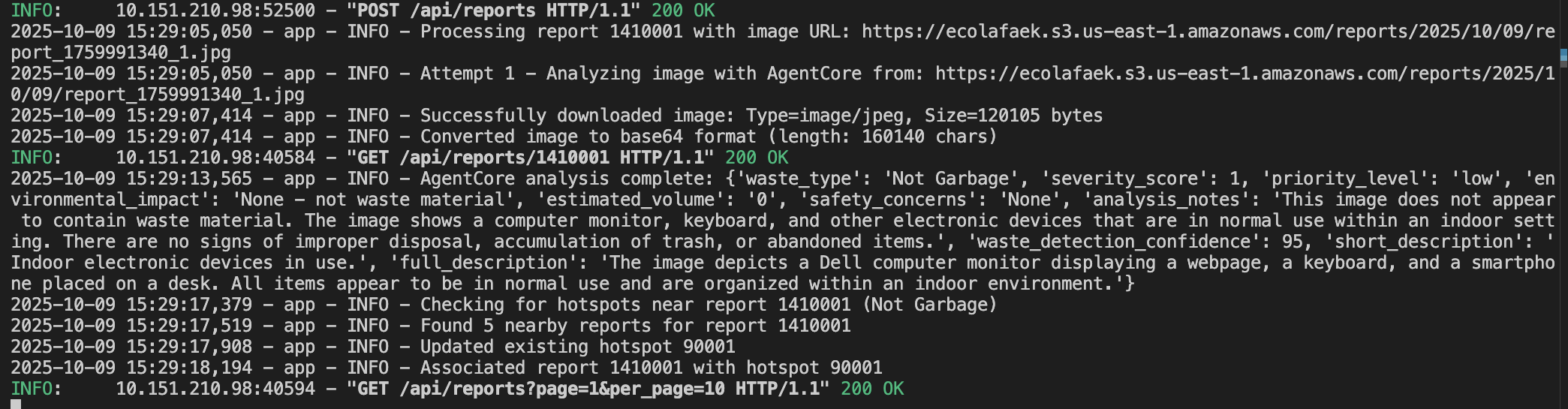

No have Image

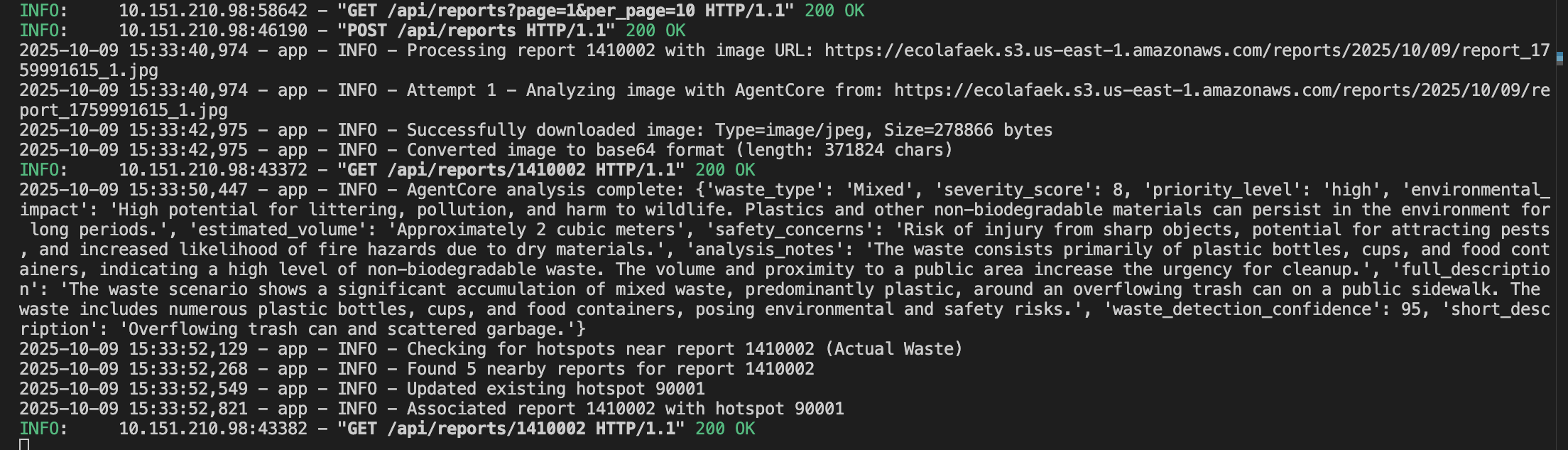

Have Image

🛠️ Setup & Installation

Prerequisites

Python 3.10+
AWS Account with Bedrock access
AWS CLI configured
AgentCore CLI installed (pip install bedrock-agentcore)

Installation

bash

# 1. Clone repository
git clone https://github.com/ajitonelsonn/ecolafaek.git
cd ecolafaek/mobile_backend

# 2. Create virtual environment
python3 -m venv venv
source venv/bin/activate  # On Windows: venv\Scripts\activate

# 3. Install dependencies
pip install -r requirements.txt

# 4. Copy environment template
cp .env.example .env

# 5. Configure .env file (see Configuration section)
nano .env

# 6. Deploy AgentCore runtime
agentcore launch

# 7. Run locally
uvicorn app:app --host 0.0.0.0 --port 8000 --reload

Configuration

Edit .env file with your credentials:

bash

# API Configuration
PORT=8000
API_SECRET_KEY=your_secret_key_here
ENVIRONMENT=production
ALLOWED_ORIGINS=https://yourdomain.com

# AWS Bedrock Configuration
AWS_ACCESS_KEY_ID=your_aws_access_key
AWS_SECRET_ACCESS_KEY=your_aws_secret_key
AWS_REGION=us-east-1
BEDROCK_MODEL_ID=amazon.nova-pro-v1:0

# Amazon S3 Configuration
S3_BUCKET_NAME=your-bucket-name

# Database Configuration
DB_HOST=your_database_host
DB_NAME=db_ecolafaek
DB_USER=your_db_user
DB_PASSWORD=your_db_password
DB_PORT=4000

# JWT Configuration
JWT_SECRET=your_jwt_secret_key
JWT_EXPIRATION_HOURS=24

# Email Configuration (optional)
EMAIL_USER=your_email@gmail.com
EMAIL_PASS=your_app_password
EMAIL_SERVER=smtp.gmail.com
EMAIL_PORT=587

🚀 AWS Lightsail Deployment

Deployment Scripts

Initial Deployment: deploy_lightsail.sh

bash

# Automated deployment script:
# 1. Creates Lightsail instance (micro_3_0 bundle)
# 2. Configures firewall (ports 22, 80, 443, 8000)
# 3. Uploads application code via SCP
# 4. Installs Python 3.10 + dependencies
# 5. Sets up systemd service (ecolafaek-api.service)
# 6. Configures Nginx reverse proxy
# 7. Sets up Let's Encrypt SSL with auto-renewal

./deploy_lightsail.sh

Code Updates: update_lightsail.sh

bash

# Quick update script:
# 1. Packages latest code
# 2. Uploads to existing instance
# 3. Restarts systemd service
# 4. Zero downtime deployment

./update_lightsail.sh

Monitoring

bash

# View real-time logs
sudo journalctl -u ecolafaek-api -f

# Check service status
sudo systemctl status ecolafaek-api

# Restart service
sudo systemctl restart ecolafaek-api

# View AgentCore logs
aws logs tail /aws/bedrock-agentcore/runtimes/ecolafaek_waste_agent-TGrtjyF5VC-DEFAULT --follow

🌐 Live Demo

Our complete EcoLafaek ecosystem is publicly accessible:

API Health Check: https://www.ecolafaek.xyz/health
Public Dashboard: https://www.ecolafaek.com/
AI Chat Interface: https://www.ecolafaek.com/agentcore-chat
Mobile App Download: https://www.ecolafaek.com/download

Test Credentials

Username: usertest
Password: 1234abcd

📝 Project Structure

mobile_backend/
├── app.py                          # Main FastAPI application
├── agentcore_tools.py              # AgentCore tool implementations
├── schema_based_chat.py            # Chat schema definitions
├── web_scraper_tool.py             # Web scraping tool
├── requirements.txt                # Python dependencies
├── .env.example                    # Environment template
├── .bedrock_agentcore.yaml         # AgentCore configuration
├── .dockerignore                   # Docker ignore file
├── Dockerfile                      # AgentCore container
├── deploy_lightsail.sh             # Deployment script
├── update_lightsail.sh             # Update script
└── install_agentcore.sh            # AgentCore setup script

🔒 Security Features

Rate Limiting: slowapi middleware (per-IP tracking)
JWT Authentication: HS256 with 24-hour expiration
Password Hashing: PBKDF2-HMAC-SHA256 (100,000 iterations)
HTTPS: Let's Encrypt SSL with TLS 1.3
CORS: Whitelist allowed origins
SQL Injection Prevention: Parameterized queries only

For detailed AI agent architecture, see Architecture Diagram.

📞 Additional Documentation

📱 Mobile App: ../ecolafaek/README.md
🌐 Public Dashboard: ../ecolafaek_public_dahboard/README.md
👨‍💼 Admin Panel: ../ecolafaek_admin_panel/README.md
🗄️ Database Schema: ../database/README.md
📊 System architecture: ../Diagram/README.md
📄 Main Project: ../README.md

Built with ❤️ for Timor-Leste

AWS AI Agent Global Hackathon

EcoLafaek Mobile Backend API ​

Autonomous AI Agent Backend ​

🤖 Core AI Agent Innovation: ​

🌱 Overview ​

🤖 AWS AI Agent Architecture ​

Autonomous Agent Workflow ​

AWS Services Used ​

1. Amazon Bedrock ​

2. Amazon Bedrock AgentCore ​

3. External Tools Integration ​

🧠 AI Agent Capabilities ​

Tool Suite (5 Custom Tools) ​

Autonomous Reasoning Example ​

🏗️ Technical Architecture ​

Core Stack ​

Key Endpoints ​

🚀 Amazon Bedrock AgentCore Implementation ​

AgentCore Configuration ​

Deployment Process ​

AgentCore Tools Implementation ​

📸 Image Analysis with Nova-Pro ​

Multi-Modal AI Processing ​

Analysis Output ​

Example Output ​

🛠️ Setup & Installation ​

Prerequisites ​

Installation ​

Configuration ​

🚀 AWS Lightsail Deployment ​

Deployment Scripts ​

Monitoring ​

🌐 Live Demo ​

Test Credentials ​

📝 Project Structure ​

🔒 Security Features ​

📞 Additional Documentation ​

EcoLafaek Mobile Backend API

Autonomous AI Agent Backend

🤖 Core AI Agent Innovation:

🌱 Overview

🤖 AWS AI Agent Architecture

Autonomous Agent Workflow

AWS Services Used

1. Amazon Bedrock

2. Amazon Bedrock AgentCore

3. External Tools Integration

🧠 AI Agent Capabilities

Tool Suite (5 Custom Tools)

Autonomous Reasoning Example

🏗️ Technical Architecture

Core Stack

Key Endpoints

🚀 Amazon Bedrock AgentCore Implementation

AgentCore Configuration

Deployment Process

AgentCore Tools Implementation

📸 Image Analysis with Nova-Pro

Multi-Modal AI Processing

Analysis Output

Example Output

🛠️ Setup & Installation

Prerequisites

Installation

Configuration

🚀 AWS Lightsail Deployment

Deployment Scripts

Monitoring

🌐 Live Demo

Test Credentials

📝 Project Structure

🔒 Security Features

📞 Additional Documentation
